This is an open-access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/4.0) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.
It is essential to develop tomato (Solanum lycopersicum L.) cultivars with tolerance to low temperature (LT) for reducing production cost and increasing fruit quality in winter. This study was conducted to investigate the effects of LT on 40 tomato accessions for establishing selection criteria to select accessions with LT tolerance. Tomato plants were grown in two polyethylene film greenhouses with night temperature set-points of 10℃ and 15℃. LT significantly affected the photosynthetic parameters as well as both vegetative and reproductive growth in tomato. There was a significant difference in plant height between plants grown in 10℃ and 15℃. Leaf length and width were also significantly lower in 10℃. The stem diameter was generally lower in 10℃ but 12 accessions in 10℃ had thicker stem diameter than those in 15℃. The retarded growth was due to lower photosynthetic rate in 10℃ than 15℃. Significant delay in flowering was observed among tomato accessions in 10℃. For the number of flowers, 62.5% showed the increase but 37.5% did the decrease in 10℃ among 40 tomato accessions, showing genotype specific interaction with LT. Accessions with small fruits showed reduced fruit set in 10℃; however, it was not obvious among accessions with large fruits. Interestingly, 75% of accessions showed increased chlorophyll contents in 10℃ compared to 15℃. An accession ‘VI037163’ was selected for LT tolerance based on good performance in six out of seven traits considered such as plant height, leaf length, stem diameter, chlorophyll contents, days to flowering, the number of flowers and fruit set.
Tomato (Solanum lycopersicum L.) is one of important greenhouse vegetables grown all-year-round and its cultivation area and production in 2017 were 5,782 ha and 355,107 metric tones, respectively, in Korea (Korean Statistical Information Service, http://kosis.kr). Greenhouses with heating system are mandatory in the winter for tomato cultivation in Korea and the heating cost is the most important factor affecting the production cost of tomato fruits. Approximately 16% of energy cost can be reduced if temperature set-point is reduced by 2℃ in greenhouses (Elings et al. 2005). Therefore, developing tomato cultivars with LT tolerance is crucial for reducing production cost and increasing fruit quality in winter.
Night temperature in greenhouses is more important to reduce energy cost since ambient temperature is generally lower in the night than day. Besides, high temperature during the daytime can compensate for low temperature during the night (LTN), in terms of the growth of tomato plants (De Koning 1988). The reduction in energy cost can be achieved by using covering materials such as thermal screens but the best way is simply to decrease the night temperature in greenhouses. Therefore, breeding program for tomato cultivars with LT tolerance should focus on the night temperature.
In order to establish the optimal selection criteria in tomato breeding program for LT tolerance, it is important to investigate the response of tomato accessions to LT in large scale. Several studies investigated the effect of the LT on the growth and yield of tomato; however, most of studies were conducted with less than five cultivars and only few studies with more than ten cultivars (Der Van Ploeg and Heuvelink 2005). This study was conducted to evaluate the effect of LTN on 40 tomato accessions in greenhouses with different temperature set-points for establishing optimal selection criteria to select accessions with LT tolerance.
MATERIALS AND METHODS
Plant materials and growing condition
Thirty tomato breeding lines from National Institute of Horticultural and Herbal Science (NIHHS) and 10 commercial cultivars were used in this study (Table 1). All the accessions were classified according to fruit size: Wild (> 10 g), Cherry (10-30 g), Medium (31 g-80 g) and Large (< 81 g). Seeds were sown in plastic trays containing 1:1 sand: peat (volume) on October 10, 2018 and grown in a glasshouse with 26/18℃ (day/night) temperature. Seedlings about 20-25 cm in height and with the first truss were transplanted on 8 November 2018 and transferred to two plastic film greenhouses where night air temperature set-point was 10℃ and 15℃. A total of 160 plants (4 plants per accession) per greenhouse were planted with 40 × 40 cm intervals between plants.
Investigation of vegetative and reproductive growth
Plant height, leaf length and width, and stem diameter were measured from three plants per accession in both greenhouses 30, 65, 95 and 125 days after transplanting (DAT). Days to flower were determined by the date when the third flower on the second truss flowered. Fruit set was determined calculating the ratio of fruits to flowers on the average of second and third trusses. Chlorophyll content was measured from mid leaves using SPAD meter (Konica Minolta, Japan) in 30, 65, 95 and 125 DAT. Differences in all growth parameters between plants grown in 10℃ and 15℃ greenhouses, except for fruit set, were calculated by (L/N)*100, where L and N represent the values of growth parameters in 10℃ and 15℃, respectively. Difference in fruit set was calculated by subtracting fruit set of 15℃ from 10℃. Standard errors were calculated using EXCEL 2016 program (Microsoft Co. Ltd., USA).
Data collection on temperature, relative humidity and photosynthetic parameters
Temperature and relative humidity (RH) during entire growing period were recorded using data logger (WatchDog 1450, Spectrum Technologies Inc., Aurora, USA) in both 10℃ and 15℃ greenhouses (Fig. 1).
The photosynthetic rate A (µmol CO2 /m2/s), stomatal conductance Cond, gs (mol H2O /m2/s) intercellular CO2 concentration Ci, (µmol CO2 /mol), and transpiration rate Trµmol (µmol H2O /m2/s) measured every 30, 65, 95 and 125 DAT in five randomly selected tomato leaves (T09, T16, T24, T28 and T37). Data were recorded in three plants per accessions in both 10℃ and 15℃ between 11:00 am and 13:00 pm using a portable photosynthesis measurement system (LI-6400, LI-COR Bioscience, Lincoln, NE, USA). Light response curves (PAR) was 500 µmol/m2/s. The leaf chamber temperature was 25℃, and the CO2 concentration was 400 µmol (CO2) /mol. The photosynthetic rate was measured automatically at each irradiation level 3-4 minutes after light exposure.
RESULTS
Growing condition for tomato accessions
Greenhouse condition for both 10℃ and 15℃ was shown in Fig. 1. Temperature set-point at night in the first week was maintained at 15℃ in both greenhouses for adapting seedlings to the new environment. Minimum and maximum temperatures in a greenhouse with temperature set-point 10℃ were 7℃ and 33℃, respectively, and those in a greenhouse with temperature set-point 15℃ were 11℃ and 38℃ (Fig. 1a). The mimimum temperature in the greenhouse with temperature set-point 10℃ was slightly lower in the first half of growing period than the second half, probably due to unstable sensor or heating system. However, the minimum temperature after the 9th week was fully controlled, maintaining a constant temperature of approximately 10℃ (Fig. 1a). The average RH ranged from 45 to 50% in both greenhouses (Fig. 1b). Minimum and maximum RH were generally lower and higher, respectively, in the greenhouse with temperature set-point 15℃ than 10℃.
Vegetative growth of tomato accessions in LT
LT significantly affected the plant growth. The plant height in 10℃ was significantly lower than that in 15℃ in all growing period (Fig. 2a, b). Larger differences in plant height between 10℃ and 15℃, which mean susceptible to LT, were observed in T31, T01, T36 and T05 (35.3, 36.5, 36.9, and 37.3%, respectively) and smaller differences, tolerant to LT, were in T20, T10, T12 and T06 (75.4, 72.9, 69.7, and 66.5%, respectively) (data now shown). Similar to plant height, 40 and 37 accessions have short leaf length and width, respectively, in 10℃ than 15℃. Accessions T33, T10, T20 and T07 showed smallest difference in leaf length such as 89.9, 87.6, 85.9 and 82.5%, respectively (Table 2). The leaf width of T33 and T10 increased in 10℃ by 19.7 and 8.4%, respectively. However, the other 37 accessions, except for T13, showed decrease in leaf width in 10℃ (Table 2). The average stem diameter in 40 accessions also tend to be lower in 10℃ than 15℃ but 12 accessions (T10, T33, T07, T37, T27, T17, T14, T26, T21, T40, T04 and T24) in 10℃ had thicker stem diameter than those in 15℃ (Table 2).
Photosynthesis among 40 accessions significantly reduced in LT (Fig. 3). In early growing period (until 30 DAT), photosynthetic rate A was higher in 10℃ than 15℃. However, it was reversed thereafter and the difference was significant between 65 and 95 DAT (Fig. 3a). Photosynthetic rate A in both temperature conditions decreased over time during the entire growing period (Fig. 3a). Stomatal conductance and transpiration rate were also significantly higher in 15℃ than 10℃ in all growing period (Fig. 3b, c). Intercellular CO2 concentration was also higher in 15℃ but differences were not significant except for 65 DAT (Fig. 3d).
Reproductive growth of tomato accessions in LT
Flowering was significantly delayed in all accessions when grown in 10℃ (Fig. 4). On average, the flowering initiated 23.9 days later in the accessions grown in 10℃ than those in 15℃. Accessions T01 and T20 flowered earlier than others in both 10℃ (46.3 and 48.0 DAT, respectively) and 15℃ (27.8 and 33.3 DAT, respectively) (Fig. 4). Difference in days to flowering was greatest in T09 as 82% (76.0 and 41.8 DAT in 10℃ and 15℃, respectively) and smallest in T10 as 15.7% (73.5 and 63.5 DAT in 10℃ and 15℃, respectively).
The LT condition significantly influenced the number of flowers among the accessions (Fig. 5). Among 40, 25 accessions (62.5%) showed the increase in the number of flowers in 10℃ but it decreased in 15 accessions (37.5%). This could be due to the genotype specific interaction with LT. The difference in the number of flowers between 10℃ and 15℃ was largest in T14 (224.7%) and smallest in T12 (53.7%) (Fig. 4).
Fruit set tend to decrease in LT condition among the 40 tomato accessions. For instance, the fruit set decreased in 29 accessions (72.5%) whereas increased in 10 accessions (25%) (Fig. 6) and no difference was observed in a T16 (2.5%). The decrease in fruit set was genotype specific; 79.2% of accessions (19 out of 24) with cherry and medium sized fruits but 40% of accessions (6 out of 15) with large fruits had decreased fruit set ratio in 10℃ (Fig. 6). The accessions such as T03, T15, T17, T19, T25, T35 and T4 did not bear fruits on both the second and third trusses at 10℃, showing high susceptibility to LT (data not shown). Accessions T10, T14, T30 and T38 displayed highest difference in fruit set but T03, T09, T28 and T35 the smallest (Fig. 6).
Chlorophyll content of tomato accessions in LT
The chlorophyll content in all tomato accessions steadily increased during the entire growing period regardless of temperature conditions in greenhouses. Tomato accessions grown in 10℃ tend to have higher chlorophyll contents than in 15℃ but 10 accessions showed lower chlorophyll content in 10℃ than 15℃ (Fig. 7). The maximum and minimum chlorophyll contents in 15℃ at 125 DAT were 60.3 (T22) and 32.3 mg/cm2 (T01), respectively, those in LT were 6.9 (T06) and 37.5 mg/cm2 (T15), respectively. Differences in chlorophyll contents between 10℃ and 15℃ were highest in T27 (146.2%) and lowest in T11 (83.4%) (Fig. 7).
Selection of tomato accessions for LT tolerance
To select accessions with LT tolerance, seven traits were chosen such as plant height, leaf length, stem diameter, chlorophyll contents, days to flowering, the number of flowers and fruit set (Table 3), but leaf width was excluded due to high correlation with leaf length (data not shown). After selecting top four accessions (10th percentile) in each trait, an accession T10, ‘VI037163’, which has cherry type fruits (about 20 g) with brownish skin color and high sugar content, was selected for LT tolerance, based on good performance in six among a total of seven traits (Table 3).
DISCUSSION
LT has a large effect on the vegetative development in tomato. In our study, the plant growth was significantly delayed in LT in all the 40 tomato accessions (Fig. 2). Vegetative growth such as plant height, leaf length and width, and stem diameter were significantly reduced in 10℃ compared to 15℃ (Fig. 2, Table 2) although some accessions have increased stem diameter in 10℃ (Table 2). Our results are consistent with previous results that reported reduced growth rate among tomato plants grown in LTN (Smeets and Garretsen 1986; Franco 1990; Nieuwhof et al. 1991; Der Van Ploeg and Heuvelink 2005).
The difference in the growth rate between 10℃ and 15℃ might be the result of the reduced photosynthesis of tomato plants in LT because all photosynthetic parameters were higher in 15℃ than 10℃ (Fig. 3). The decrease in photosynthetic rate was also observed in wild Lycopersicon species when day temperature was reduced (Venema et al. 1999) and Fang et al. (2018) also reported reduced photosynthetic rate and stomatal conductance in tomato plants under LT stress condition. It is interesting to observe the increased chlorophyll contents among plants grown LT (Fig. 7) even though photosynthesis was significantly reduced in LT (Fig. 3). Further study necessary to clarify the relationship between chlorophyll content and photosynthesis in LT condition.
LT also affect the reproductive growth of tomato accessions. Days to flower was significantly delayed in all accessions grown in 10℃ compared to 15℃ (Fig. 4). However, the delayed flowering may be not the direct cause of LT but delayed growth of tomato plants (Fig. 2). A previous research supports our assumption, indicating that the delay in the time to flowering of tomato plants in LT is due to the reduced rate of leaf appearance (Hurd and Graves 1985).
Previously, the only increase in the number of flowers was reported in decreased day (Rylski 1979), night (Calvert 1957; Wittwer and Tuebner 1957) and root temperatures (Phatak et al. 1966). In our study, however, both the increase (25 accessions) and decrease (15 accessions) in the number of flowers were observed in 10℃ compared to 15℃ (Fig. 5). Our result suggests that the effect of LT on the number of flowers is genotype specific, showing interaction between genotypes and LT, which is still unknown (Fig. 5).
Interestingly, 72.0% of accessions (18 out of 25) with small fruits (wild, cherry and medium sized fruits) but only 40% of accessions (6 out of 15) with large fruits had decreased fruit set in 10℃ compared to 15℃ (Fig. 6), indicating a possible relationship between fruit set and fruit size. The reduced fruit set might be due to poorer quality pollen in LT (reviewed by Picken 1984) and not effects on stigma level or ovule viability (Fernandez-Munoz and Cuartero 1991).
Seven traits such as plant height, leaf length, stem diameter, chlorophyll contents, days to flowering, the number of flowers and fruit set were used in our study for the selection of tomato accessions with LT tolerance (Table 3). Selection criteria was based on the difference in those traits between 10℃ and 15℃. The largest percentage in all parameters, except for days to flower and the number of flowers, was assumed to be tolerant to LT (Table 3). For the days to flowering, accessions that have the smallest percentages were selected. For the number of flowers, accessions that were not affected by LT were selected because both the increase and decrease may be not good for the fruit yield; the increase can make plants use more energy to produce flowers and the decrease can affect the number of fruits produced. The traits chosen may be useful for tomato breeding program because they are easy to investigate in field and the data can be collected in the relatively early growing period.
ACKNOWLEDGEMENTS
This study was supported by a grant (Project No: PJ012662 “Breeding and selection of tomato lines with tolerance to abnormal temperatures stress”) from National Institute of Horticultural and Herbal Science, Rural Development Administration.
Fig. 1

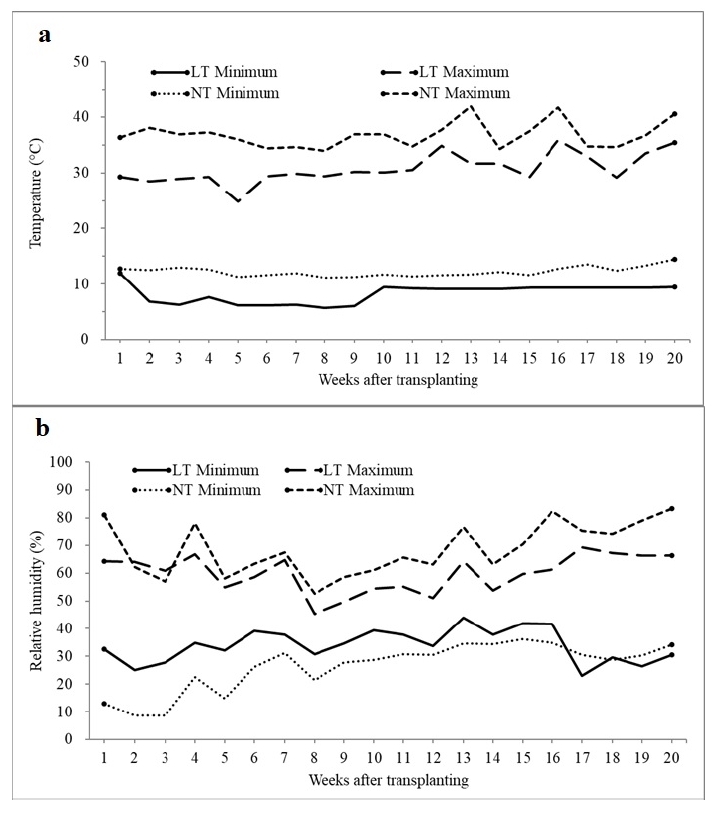

Air temperature (a) and relative humidity (b) measured during the entire growth period in greenhouses whose night temperature set-points were 10 and 15℃. LT and NT: greenhouses with night temperature set-points of 10 and 15℃, respectively.
Fig. 2

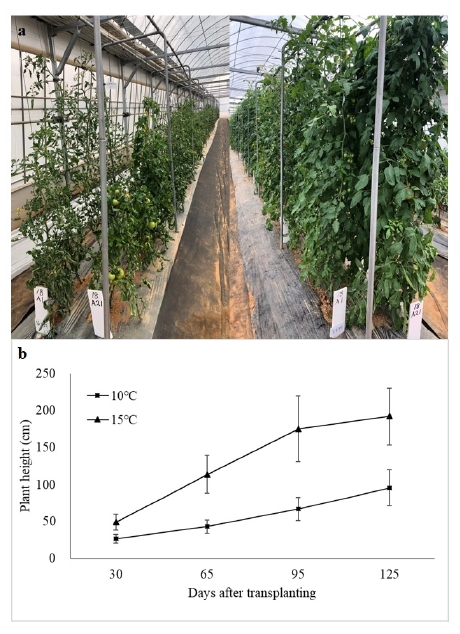

The growth of tomato accessions in 10℃ and 15℃. (a) The tomato plants grown in greenhouses with night temperature set-points of 10℃ (left) and 15℃ (right). Photos were taken 125 days after transplanting. (b) Changes in average plant height of 40 accessions during entire growing period.
Fig. 3

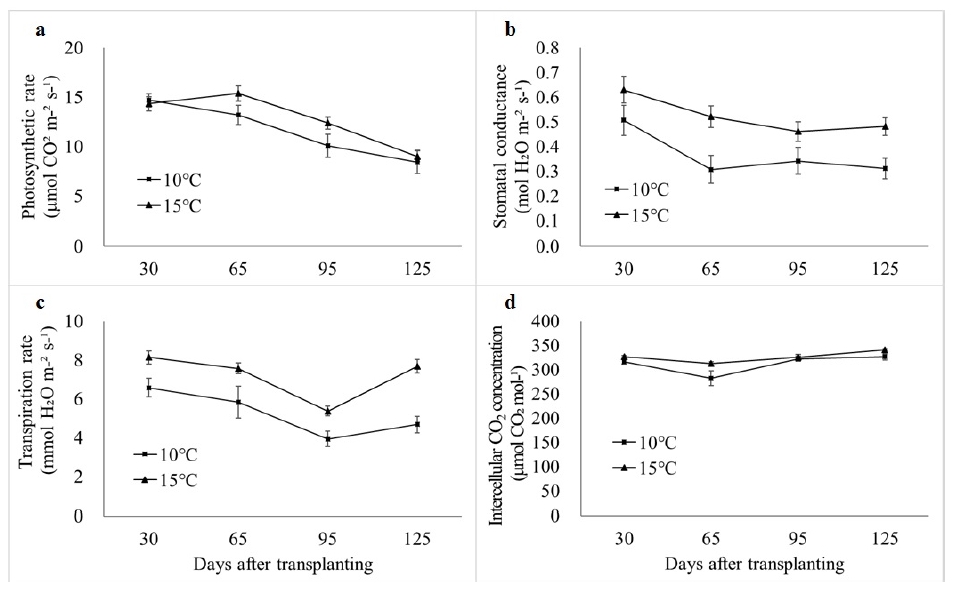

Photosynthetic rate A (a), stomatal conductance (b), transpiration rate (c) and intercellular CO2 concentration of five tomato accessions (T09, T16, T24, T28 and T37), measured 30, 65, 95 and 125 days after transplanting in greenhouses with night temperature set-point of 10℃ and 15℃.
Fig. 4

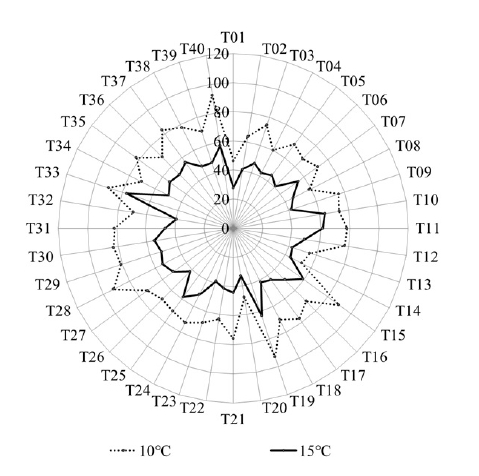

Days to flowering among 40 tomato accessions grown in greenhouses whose night temperature set-point were 10 and 15℃.
Fig. 5

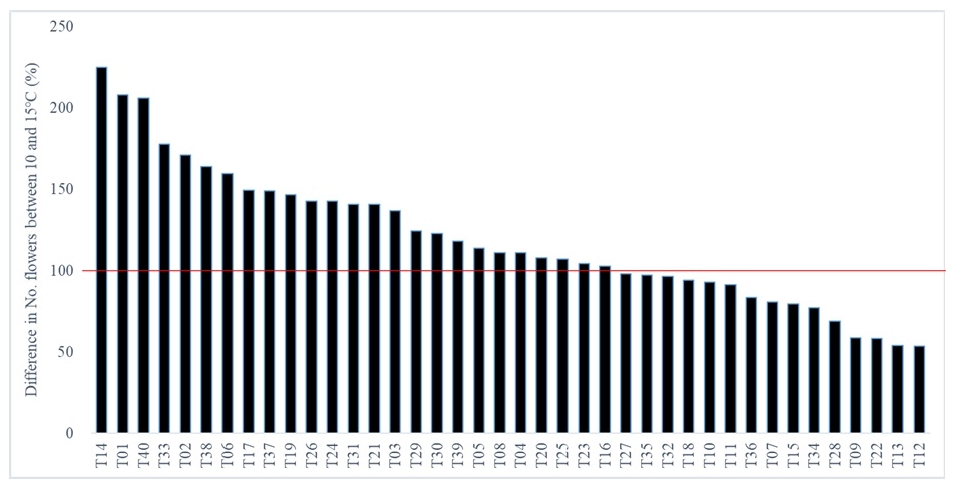

Difference in the number of flowers between 10 and 15℃ among 40 tomato accessions. Lower and higher than 100% means the number of flowers in 10℃ was lower or higher than those in 15℃, respectively. A transverse red line indicates the 100%, no difference in the number of flowers between 10 and 15℃.
Fig. 6

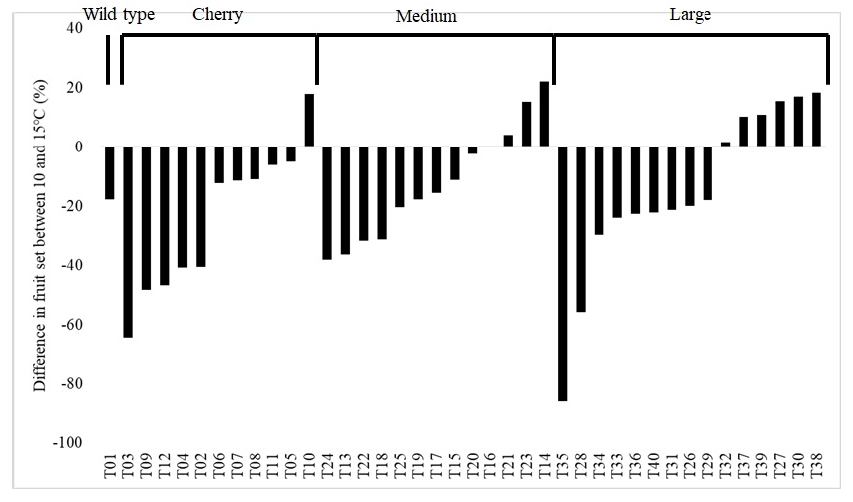

Difference in fruit set between 10 and 15℃ among 40 tomato accessions. Negative percentage means decrease in fruit set of plants grown in 10℃ greenhouse compared to 15℃.
Fig. 7

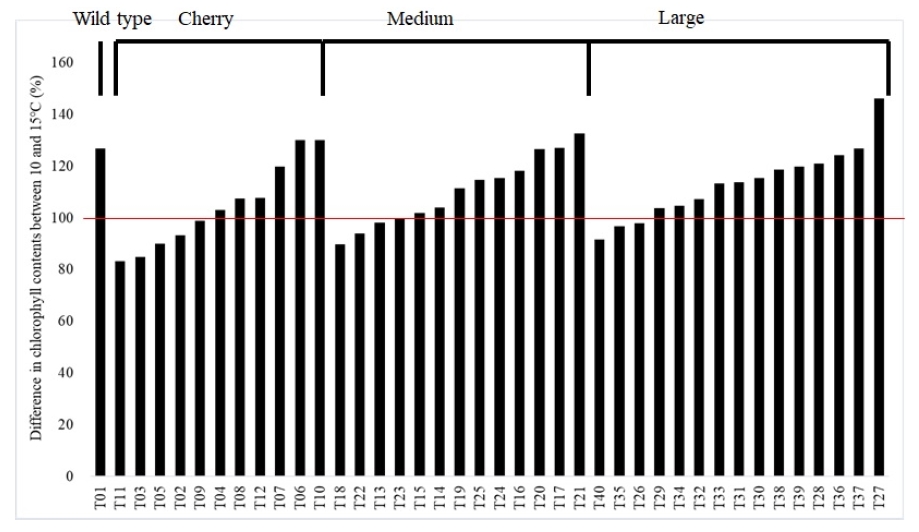

Difference in chlorophyll contents between 10 and 15℃ among 40 tomato accessions. Lower and higher than 100% means the chlorophyll contents of plants grown in 10℃ was lower or higher than those in 15℃, respectively. A transverse red line indicates the 100%, no difference in chlorophyll content between 10 and 15℃.

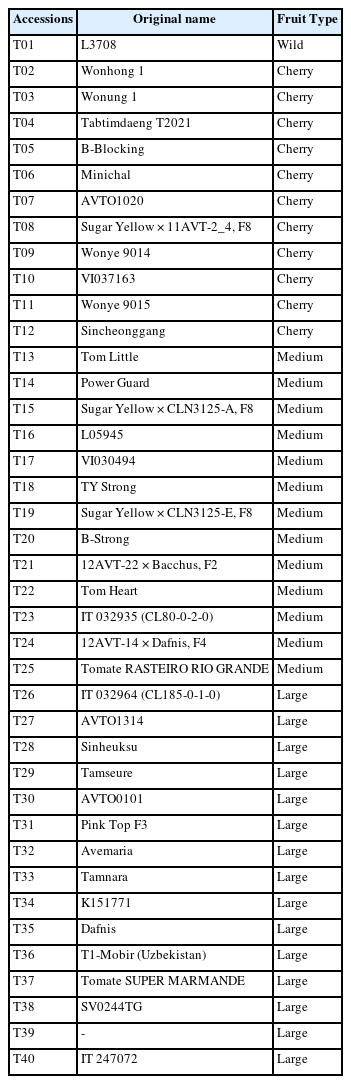

Table 1
Accessions used in this study and their fruit types.
Table 1
Accessions
Original name
Fruit Type
T01
L3708
Wild
T02
Wonhong 1
Cherry
T03
Wonung 1
Cherry
T04
Tabtimdaeng T2021
Cherry
T05
B-Blocking
Cherry
T06
Minichal
Cherry
T07
AVTO1020
Cherry
T08
Sugar Yellow × 11AVT-2_4, F8
Cherry
T09
Wonye 9014
Cherry
T10
VI037163
Cherry
T11
Wonye 9015
Cherry
T12
Sincheonggang
Cherry
T13
Tom Little
Medium
T14
Power Guard
Medium
T15
Sugar Yellow × CLN3125-A, F8
Medium
T16
L05945
Medium
T17
VI030494
Medium
T18
TY Strong
Medium
T19
Sugar Yellow × CLN3125-E, F8
Medium
T20
B-Strong
Medium
T21
12AVT-22 × Bacchus, F2
Medium
T22
Tom Heart
Medium
T23
IT 032935 (CL80-0-2-0)
Medium
T24
12AVT-14 × Dafnis, F4
Medium
T25
Tomate RASTEIRO RIO GRANDE
Medium
T26
IT 032964 (CL185-0-1-0)
Large
T27
AVTO1314
Large
T28
Sinheuksu
Large
T29
Tamseure
Large
T30
AVTO0101
Large
T31
Pink Top F3
Large
T32
Avemaria
Large
T33
Tamnara
Large
T34
K151771
Large
T35
Dafnis
Large
T36
T1-Mobir (Uzbekistan)
Large
T37
Tomate SUPER MARMANDE
Large
T38
SV0244TG
Large
T39
-
Large
T40
IT 247072
Large
Values are mean ± standard deviation. Comparison of the heading date in 2014 (HD), grain length (GL), grain width (GW), 1000 grain weight and grain fertility of wild-type and wspl. Data show mean and SD of biological replicates (n > 10) and statistically calculated by Student’s t-test (NS,
*, and
** stand for not statistically significant at the 0.05 probability level, significant at the 0.05 and 0.01 probability levels, respectively).

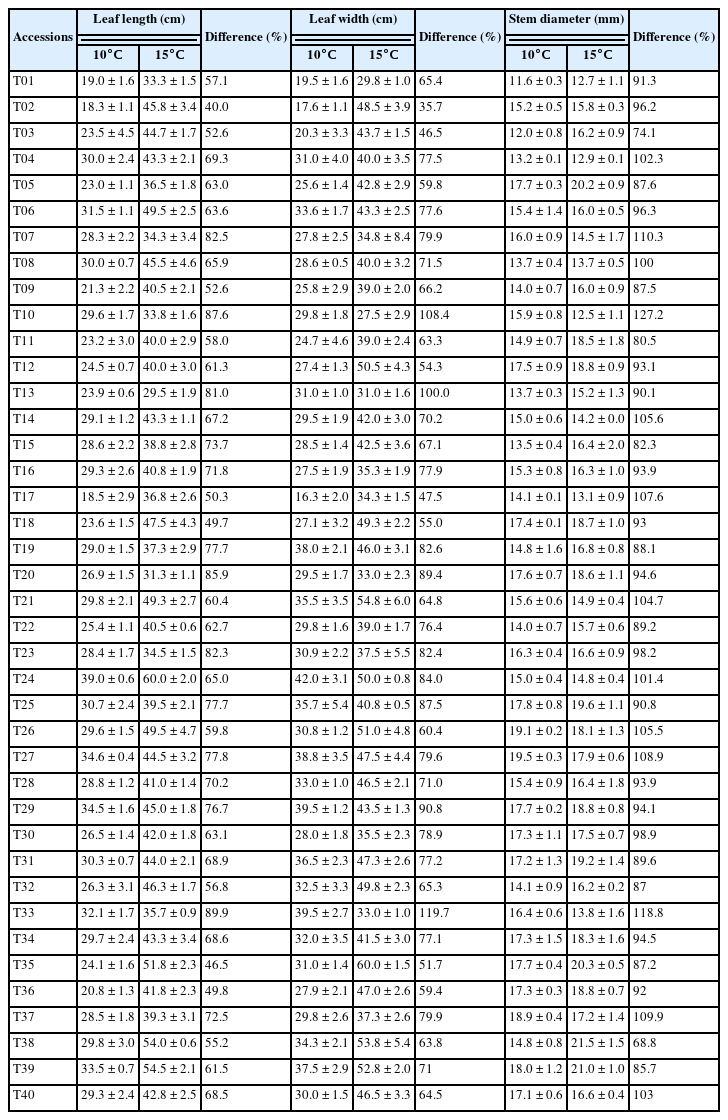

Table 2
Effects of low temperature on leaf length and width, and stem diameter among 40 tomato accessions.
Table 2
Accessions
Leaf length (cm)
Difference (%)
Leaf width (cm)
Difference (%)
Stem diameter (mm)
Difference (%)
10℃
15℃
10℃
15℃
10℃
15℃
T01
19.0 ± 1.6
33.3 ± 1.5
57.1
19.5 ± 1.6
29.8 ± 1.0
65.4
11.6 ± 0.3
12.7 ± 1.1
91.3
T02
18.3 ± 1.1
45.8 ± 3.4
40.0
17.6 ± 1.1
48.5 ± 3.9
35.7
15.2 ± 0.5
15.8 ± 0.3
96.2
T03
23.5 ± 4.5
44.7 ± 1.7
52.6
20.3 ± 3.3
43.7 ± 1.5
46.5
12.0 ± 0.8
16.2 ± 0.9
74.1
T04
30.0 ± 2.4
43.3 ± 2.1
69.3
31.0 ± 4.0
40.0 ± 3.5
77.5
13.2 ± 0.1
12.9 ± 0.1
102.3
T05
23.0 ± 1.1
36.5 ± 1.8
63.0
25.6 ± 1.4
42.8 ± 2.9
59.8
17.7 ± 0.3
20.2 ± 0.9
87.6
T06
31.5 ± 1.1
49.5 ± 2.5
63.6
33.6 ± 1.7
43.3 ± 2.5
77.6
15.4 ± 1.4
16.0 ± 0.5
96.3
T07
28.3 ± 2.2
34.3 ± 3.4
82.5
27.8 ± 2.5
34.8 ± 8.4
79.9
16.0 ± 0.9
14.5 ± 1.7
110.3
T08
30.0 ± 0.7
45.5 ± 4.6
65.9
28.6 ± 0.5
40.0 ± 3.2
71.5
13.7 ± 0.4
13.7 ± 0.5
100
T09
21.3 ± 2.2
40.5 ± 2.1
52.6
25.8 ± 2.9
39.0 ± 2.0
66.2
14.0 ± 0.7
16.0 ± 0.9
87.5
T10
29.6 ± 1.7
33.8 ± 1.6
87.6
29.8 ± 1.8
27.5 ± 2.9
108.4
15.9 ± 0.8
12.5 ± 1.1
127.2
T11
23.2 ± 3.0
40.0 ± 2.9
58.0
24.7 ± 4.6
39.0 ± 2.4
63.3
14.9 ± 0.7
18.5 ± 1.8
80.5
T12
24.5 ± 0.7
40.0 ± 3.0
61.3
27.4 ± 1.3
50.5 ± 4.3
54.3
17.5 ± 0.9
18.8 ± 0.9
93.1
T13
23.9 ± 0.6
29.5 ± 1.9
81.0
31.0 ± 1.0
31.0 ± 1.6
100.0
13.7 ± 0.3
15.2 ± 1.3
90.1
T14
29.1 ± 1.2
43.3 ± 1.1
67.2
29.5 ± 1.9
42.0 ± 3.0
70.2
15.0 ± 0.6
14.2 ± 0.0
105.6
T15
28.6 ± 2.2
38.8 ± 2.8
73.7
28.5 ± 1.4
42.5 ± 3.6
67.1
13.5 ± 0.4
16.4 ± 2.0
82.3
T16
29.3 ± 2.6
40.8 ± 1.9
71.8
27.5 ± 1.9
35.3 ± 1.9
77.9
15.3 ± 0.8
16.3 ± 1.0
93.9
T17
18.5 ± 2.9
36.8 ± 2.6
50.3
16.3 ± 2.0
34.3 ± 1.5
47.5
14.1 ± 0.1
13.1 ± 0.9
107.6
T18
23.6 ± 1.5
47.5 ± 4.3
49.7
27.1 ± 3.2
49.3 ± 2.2
55.0
17.4 ± 0.1
18.7 ± 1.0
93
T19
29.0 ± 1.5
37.3 ± 2.9
77.7
38.0 ± 2.1
46.0 ± 3.1
82.6
14.8 ± 1.6
16.8 ± 0.8
88.1
T20
26.9 ± 1.5
31.3 ± 1.1
85.9
29.5 ± 1.7
33.0 ± 2.3
89.4
17.6 ± 0.7
18.6 ± 1.1
94.6
T21
29.8 ± 2.1
49.3 ± 2.7
60.4
35.5 ± 3.5
54.8 ± 6.0
64.8
15.6 ± 0.6
14.9 ± 0.4
104.7
T22
25.4 ± 1.1
40.5 ± 0.6
62.7
29.8 ± 1.6
39.0 ± 1.7
76.4
14.0 ± 0.7
15.7 ± 0.6
89.2
T23
28.4 ± 1.7
34.5 ± 1.5
82.3
30.9 ± 2.2
37.5 ± 5.5
82.4
16.3 ± 0.4
16.6 ± 0.9
98.2
T24
39.0 ± 0.6
60.0 ± 2.0
65.0
42.0 ± 3.1
50.0 ± 0.8
84.0
15.0 ± 0.4
14.8 ± 0.4
101.4
T25
30.7 ± 2.4
39.5 ± 2.1
77.7
35.7 ± 5.4
40.8 ± 0.5
87.5
17.8 ± 0.8
19.6 ± 1.1
90.8
T26
29.6 ± 1.5
49.5 ± 4.7
59.8
30.8 ± 1.2
51.0 ± 4.8
60.4
19.1 ± 0.2
18.1 ± 1.3
105.5
T27
34.6 ± 0.4
44.5 ± 3.2
77.8
38.8 ± 3.5
47.5 ± 4.4
79.6
19.5 ± 0.3
17.9 ± 0.6
108.9
T28
28.8 ± 1.2
41.0 ± 1.4
70.2
33.0 ± 1.0
46.5 ± 2.1
71.0
15.4 ± 0.9
16.4 ± 1.8
93.9
T29
34.5 ± 1.6
45.0 ± 1.8
76.7
39.5 ± 1.2
43.5 ± 1.3
90.8
17.7 ± 0.2
18.8 ± 0.8
94.1
T30
26.5 ± 1.4
42.0 ± 1.8
63.1
28.0 ± 1.8
35.5 ± 2.3
78.9
17.3 ± 1.1
17.5 ± 0.7
98.9
T31
30.3 ± 0.7
44.0 ± 2.1
68.9
36.5 ± 2.3
47.3 ± 2.6
77.2
17.2 ± 1.3
19.2 ± 1.4
89.6
T32
26.3 ± 3.1
46.3 ± 1.7
56.8
32.5 ± 3.3
49.8 ± 2.3
65.3
14.1 ± 0.9
16.2 ± 0.2
87
T33
32.1 ± 1.7
35.7 ± 0.9
89.9
39.5 ± 2.7
33.0 ± 1.0
119.7
16.4 ± 0.6
13.8 ± 1.6
118.8
T34
29.7 ± 2.4
43.3 ± 3.4
68.6
32.0 ± 3.5
41.5 ± 3.0
77.1
17.3 ± 1.5
18.3 ± 1.6
94.5
T35
24.1 ± 1.6
51.8 ± 2.3
46.5
31.0 ± 1.4
60.0 ± 1.5
51.7
17.7 ± 0.4
20.3 ± 0.5
87.2
T36
20.8 ± 1.3
41.8 ± 2.3
49.8
27.9 ± 2.1
47.0 ± 2.6
59.4
17.3 ± 0.3
18.8 ± 0.7
92
T37
28.5 ± 1.8
39.3 ± 3.1
72.5
29.8 ± 2.6
37.3 ± 2.6
79.9
18.9 ± 0.4
17.2 ± 1.4
109.9
T38
29.8 ± 3.0
54.0 ± 0.6
55.2
34.3 ± 2.1
53.8 ± 5.4
63.8
14.8 ± 0.8
21.5 ± 1.5
68.8
T39
33.5 ± 0.7
54.5 ± 2.1
61.5
37.5 ± 2.9
52.8 ± 2.0
71
18.0 ± 1.2
21.0 ± 1.0
85.7
T40
29.3 ± 2.4
42.8 ± 2.5
68.5
30.0 ± 1.5
46.5 ± 3.3
64.5
17.1 ± 0.6
16.6 ± 0.4
103
± Means standard errors (n = 3).
Table 3

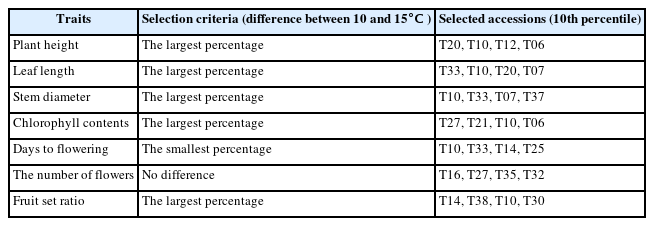

Selection criteria for accessions with low temperature tolerance and selected accessions for 7 traits.
Table 3
Traits
Selection criteria (difference between 10 and 15℃ )
Selected accessions (10th percentile)
Plant height
The largest percentage
T20, T10, T12, T06
Leaf length
The largest percentage
T33, T10, T20, T07
Stem diameter
The largest percentage
T10, T33, T07, T37
Chlorophyll contents
The largest percentage
T27, T21, T10, T06
Days to flowering
The smallest percentage
T10, T33, T14, T25
The number of flowers
No difference
T16, T27, T35, T32
Fruit set ratio
The largest percentage
T14, T38, T10, T30
± Means standard errors (n = 3).
References
Reference
Adams S, Cockshull K, Cave C. 2001. Effect of temperature on the growth and development of tomato fruits. Ann. Bot.. 88: 869-877.
Calvert A. 1957. Effect of the early environment on development of flowering in the tomato. I. Temperature. J. Hortic. Sci.. 32: 9-17.
De Koning. 1988. The effect of different day/night temperature regimes on growth, development and yield of glasshouse tomatoes. J. Hortic. Sci.. 63: 465-471.
De Koning. 2000. The effect of temperature, fruit load and salinity on development rate of tomato fruit. Acta Hortic.. 519: 85-93.
Der Van Ploeg A, Heuvelink E. 2005. Influence of sub-optimal temperature on tomato growth and yield: a review. J. Hortic. Sci. Biotechnol. 80: 6652-6659.
Elings A, Kempkes FLK, Kaarsemaker RC, Ruijs MNA, Van De, Dueck TA. 2005. The energy balance and energy-saving measures in greenhouse tomato cultivation. Acta Hortic.. 691: 67-74.
Fang X, Zaiqiang Y, Liyun Z. 2018. Low temperature and weak light affect greenhouse tomato growth and fruit quality. J. Plant Sci.. 6: 16-24.
Fernandez-Munoz R, Cuartero J. 1991. Effects of temperature and irradiance on stigma exertion, ovule viability and embryo development in tomato. J. Hortic. Sci.. 66: 395-401.
Franco T. 1990. Effects of stressful and unstressful low temperature on vegetable crops: morphological and physiological aspects. Acta Hortic.. 287: 67-76.
Hoek HIS, Hanisch Ten, Keijzer CJ, Schel JH, Dons HJM. 1993. Development of the fifth leaf is indicative for whole plant performance at low temperature in tomato. Ann. Bot.. 72: 367-374.
Khayat E, Ravad D, Zieslin N. 1985. The effect of various night-temperature regimes on the vegetative growth and fruit production of tomato plants. Sci. Hortic.. 27: 9-13.
Nieuwhof M, Garretsen F, Van Oeveren. 1991. Growth analyses of tomato genotypes grown under low energy conditions. Neth. J. Agr. Sci.. 39: 191-196.
Nieuwhof M, Keizer LCP, Van Oeveren. 1997. Effects of temperature on growth and development of adult plants of genotypes of tomato (Lycopersicon esculentum Mill.). J. Genet. Breed.. 50: 185-193.
Paul EMM. 1984. Genotypic variation in the response to suboptimal temperatures of growth in tomato (Lycopersicon esculentum Mill.). New Phytol.. 98: 221-230.
Rylski I. 1979. Fruit set and development of seeded and seedless tomato fruits under diverse regimes of temperature and pollination. J. Am. Soc. Hortic. Sci.. 104: 835-838.
Smeets L, Garretsen F. 1986. Growth analyses of tomato genotypes grown under low night temperatures and low light intensity. Euphytica. 35: 701-715.
Venema JH, Posthumus F, Vanhasselt PR. 1999. Impact of suboptimal temperature on growth, photosynthesis, leaf pigments and carbohydrates of domestic and high-altitude wild Lycopersicon species
. J. Plant Physiol.. 155: 711-718.
Wittwer SH, Tuebner FG. 1957. Cold exposure of tomato seedlings and flower formation. J. Am. Soc. Hortic. Sci.. 67: 369-376.
Figure & Data
References
Citations
Citations to this article as recorded by
Human m6A demethylase FTO modulates the flowering time of tomato plants under low-temperature stress Umme Amara, Ying Yang, Longyushu Li, Long Zhang, Yiran Heng, Jing Cai, Jiaju Tao, Jing Dong, Hunseung Kang, Tao Xu Plant Physiology and Biochemistry.2026; 238: 111754. CrossRef
Trichoderma asperellum Enhances Low-Temperature Tolerance of Tomato Plants by Regulating Oxidative Stress, Osmolyte Accumulation, and Stomatal Traits María del Pilar Osorno-Suárez, Iridiam Hernández-Soto, Eliazar Aquino-Torres, Ma Isabel Reyes-Santamaría, Alfredo Madariaga-Navarrete, Diana Sánchez-Rangel, Mariana Saucedo-García Horticulturae.2025; 11(12): 1502. CrossRef
Recent Insights into the Physio-Biochemical and Molecular Mechanisms of Low Temperature Stress in Tomato Kwanuk Lee, Hunseung Kang Plants.2024; 13(19): 2715. CrossRef
Intraspecific variation in responses to extreme and moderate temperature stress in the wild species, Solanum carolinense (Solanaceae) Emma K Chandler, Steven E Travers, Silvia Matesanz AoB PLANTS.2024;[Epub] CrossRef
Multivariate analysis of garlic (Allium sativum L.) germplasm in response to cold tolerance regimes Jalil Ahmad, Haiping Wang, Jiangping Song, Shamim Umer, Xiaohui Zhang, Wenlong Yang, Xixiang Li Crop Design.2023; 2(2): 100042. CrossRef
Identification of Key Regulatory Factors of Molecular Marker TGS377 on Chromosome 1 and Its Response to Cold Stress in Tomato Jia-Qi Zhang, Jian-Ping Tao, Liu-Xia Song, Rong-Rong Zhang, Hui Liu, Tong-Min Zhao, Wei-Min Zhu, Ai-Sheng Xiong Agronomy.2022; 12(12): 2985. CrossRef
Physiological Traits of Thirty-Five Tomato Accessions in Response to Low Temperature Sherzod Nigmatullayevich Rajametov, Kwanuk Lee, Hyo-Bong Jeong, Myeong-Cheoul Cho, Chun-Woo Nam, Eun-Young Yang Agriculture.2021; 11(8): 792. CrossRef
Factors Affecting Tolerance to Low Night Temperature Differ by Fruit Types in Tomato Eun-Young Yang, Sherzod Nigmatullayevich Rajametov, Myeong-Cheoul Cho, Hyo-Bong Jeong, Won-Byoung Chae Agriculture.2021; 11(7): 681. CrossRef
The Effect of Night Low Temperature on Agronomical Traits of Thirty-Nine Pepper Accessions (Capsicum annuum L.) Sherzod Nigmatullayevich Rajametov, Kwanuk Lee, Hyo-Bong Jeong, Myeong-Cheoul Cho, Chun-Woo Nam, Eun-Young Yang Agronomy.2021; 11(10): 1986. CrossRef
Heat Treatment in Two Tomato Cultivars: A Study of the Effect on Physiological and Growth Recovery Sherzod Nigmatullaevich Rajametov, Eun Young Yang, Hyo Bong Jeong, Myeong Cheoul Cho, Soo Young Chae, Niroj Paudel Horticulturae.2021; 7(5): 119. CrossRef
Traits Affecting Low Temperature Tolerance in Tomato and Its Application to Breeding Program
Fig. 1
Air temperature (a) and relative humidity (b) measured during the entire growth period in greenhouses whose night temperature set-points were 10 and 15℃. LT and NT: greenhouses with night temperature set-points of 10 and 15℃, respectively.
Fig. 2
The growth of tomato accessions in 10℃ and 15℃. (a) The tomato plants grown in greenhouses with night temperature set-points of 10℃ (left) and 15℃ (right). Photos were taken 125 days after transplanting. (b) Changes in average plant height of 40 accessions during entire growing period.
Fig. 3
Photosynthetic rate A (a), stomatal conductance (b), transpiration rate (c) and intercellular CO2 concentration of five tomato accessions (T09, T16, T24, T28 and T37), measured 30, 65, 95 and 125 days after transplanting in greenhouses with night temperature set-point of 10℃ and 15℃.
Fig. 4
Days to flowering among 40 tomato accessions grown in greenhouses whose night temperature set-point were 10 and 15℃.
Fig. 5
Difference in the number of flowers between 10 and 15℃ among 40 tomato accessions. Lower and higher than 100% means the number of flowers in 10℃ was lower or higher than those in 15℃, respectively. A transverse red line indicates the 100%, no difference in the number of flowers between 10 and 15℃.
Fig. 6
Difference in fruit set between 10 and 15℃ among 40 tomato accessions. Negative percentage means decrease in fruit set of plants grown in 10℃ greenhouse compared to 15℃.
Fig. 7
Difference in chlorophyll contents between 10 and 15℃ among 40 tomato accessions. Lower and higher than 100% means the chlorophyll contents of plants grown in 10℃ was lower or higher than those in 15℃, respectively. A transverse red line indicates the 100%, no difference in chlorophyll content between 10 and 15℃.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Traits Affecting Low Temperature Tolerance in Tomato and Its Application to Breeding Program
Accessions used in this study and their fruit types.
Accessions
Original name
Fruit Type
T01
L3708
Wild
T02
Wonhong 1
Cherry
T03
Wonung 1
Cherry
T04
Tabtimdaeng T2021
Cherry
T05
B-Blocking
Cherry
T06
Minichal
Cherry
T07
AVTO1020
Cherry
T08
Sugar Yellow × 11AVT-2_4, F8
Cherry
T09
Wonye 9014
Cherry
T10
VI037163
Cherry
T11
Wonye 9015
Cherry
T12
Sincheonggang
Cherry
T13
Tom Little
Medium
T14
Power Guard
Medium
T15
Sugar Yellow × CLN3125-A, F8
Medium
T16
L05945
Medium
T17
VI030494
Medium
T18
TY Strong
Medium
T19
Sugar Yellow × CLN3125-E, F8
Medium
T20
B-Strong
Medium
T21
12AVT-22 × Bacchus, F2
Medium
T22
Tom Heart
Medium
T23
IT 032935 (CL80-0-2-0)
Medium
T24
12AVT-14 × Dafnis, F4
Medium
T25
Tomate RASTEIRO RIO GRANDE
Medium
T26
IT 032964 (CL185-0-1-0)
Large
T27
AVTO1314
Large
T28
Sinheuksu
Large
T29
Tamseure
Large
T30
AVTO0101
Large
T31
Pink Top F3
Large
T32
Avemaria
Large
T33
Tamnara
Large
T34
K151771
Large
T35
Dafnis
Large
T36
T1-Mobir (Uzbekistan)
Large
T37
Tomate SUPER MARMANDE
Large
T38
SV0244TG
Large
T39
-
Large
T40
IT 247072
Large
Values are mean ± standard deviation. Comparison of the heading date in 2014 (HD), grain length (GL), grain width (GW), 1000 grain weight and grain fertility of wild-type and wspl. Data show mean and SD of biological replicates (n > 10) and statistically calculated by Student’s t-test (NS,
, and
stand for not statistically significant at the 0.05 probability level, significant at the 0.05 and 0.01 probability levels, respectively).
Effects of low temperature on leaf length and width, and stem diameter among 40 tomato accessions.
Accessions
Leaf length (cm)
Difference (%)
Leaf width (cm)
Difference (%)
Stem diameter (mm)
Difference (%)
10℃
15℃
10℃
15℃
10℃
15℃
T01
19.0 ± 1.6
33.3 ± 1.5
57.1
19.5 ± 1.6
29.8 ± 1.0
65.4
11.6 ± 0.3
12.7 ± 1.1
91.3
T02
18.3 ± 1.1
45.8 ± 3.4
40.0
17.6 ± 1.1
48.5 ± 3.9
35.7
15.2 ± 0.5
15.8 ± 0.3
96.2
T03
23.5 ± 4.5
44.7 ± 1.7
52.6
20.3 ± 3.3
43.7 ± 1.5
46.5
12.0 ± 0.8
16.2 ± 0.9
74.1
T04
30.0 ± 2.4
43.3 ± 2.1
69.3
31.0 ± 4.0
40.0 ± 3.5
77.5
13.2 ± 0.1
12.9 ± 0.1
102.3
T05
23.0 ± 1.1
36.5 ± 1.8
63.0
25.6 ± 1.4
42.8 ± 2.9
59.8
17.7 ± 0.3
20.2 ± 0.9
87.6
T06
31.5 ± 1.1
49.5 ± 2.5
63.6
33.6 ± 1.7
43.3 ± 2.5
77.6
15.4 ± 1.4
16.0 ± 0.5
96.3
T07
28.3 ± 2.2
34.3 ± 3.4
82.5
27.8 ± 2.5
34.8 ± 8.4
79.9
16.0 ± 0.9
14.5 ± 1.7
110.3
T08
30.0 ± 0.7
45.5 ± 4.6
65.9
28.6 ± 0.5
40.0 ± 3.2
71.5
13.7 ± 0.4
13.7 ± 0.5
100
T09
21.3 ± 2.2
40.5 ± 2.1
52.6
25.8 ± 2.9
39.0 ± 2.0
66.2
14.0 ± 0.7
16.0 ± 0.9
87.5
T10
29.6 ± 1.7
33.8 ± 1.6
87.6
29.8 ± 1.8
27.5 ± 2.9
108.4
15.9 ± 0.8
12.5 ± 1.1
127.2
T11
23.2 ± 3.0
40.0 ± 2.9
58.0
24.7 ± 4.6
39.0 ± 2.4
63.3
14.9 ± 0.7
18.5 ± 1.8
80.5
T12
24.5 ± 0.7
40.0 ± 3.0
61.3
27.4 ± 1.3
50.5 ± 4.3
54.3
17.5 ± 0.9
18.8 ± 0.9
93.1
T13
23.9 ± 0.6
29.5 ± 1.9
81.0
31.0 ± 1.0
31.0 ± 1.6
100.0
13.7 ± 0.3
15.2 ± 1.3
90.1
T14
29.1 ± 1.2
43.3 ± 1.1
67.2
29.5 ± 1.9
42.0 ± 3.0
70.2
15.0 ± 0.6
14.2 ± 0.0
105.6
T15
28.6 ± 2.2
38.8 ± 2.8
73.7
28.5 ± 1.4
42.5 ± 3.6
67.1
13.5 ± 0.4
16.4 ± 2.0
82.3
T16
29.3 ± 2.6
40.8 ± 1.9
71.8
27.5 ± 1.9
35.3 ± 1.9
77.9
15.3 ± 0.8
16.3 ± 1.0
93.9
T17
18.5 ± 2.9
36.8 ± 2.6
50.3
16.3 ± 2.0
34.3 ± 1.5
47.5
14.1 ± 0.1
13.1 ± 0.9
107.6
T18
23.6 ± 1.5
47.5 ± 4.3
49.7
27.1 ± 3.2
49.3 ± 2.2
55.0
17.4 ± 0.1
18.7 ± 1.0
93
T19
29.0 ± 1.5
37.3 ± 2.9
77.7
38.0 ± 2.1
46.0 ± 3.1
82.6
14.8 ± 1.6
16.8 ± 0.8
88.1
T20
26.9 ± 1.5
31.3 ± 1.1
85.9
29.5 ± 1.7
33.0 ± 2.3
89.4
17.6 ± 0.7
18.6 ± 1.1
94.6
T21
29.8 ± 2.1
49.3 ± 2.7
60.4
35.5 ± 3.5
54.8 ± 6.0
64.8
15.6 ± 0.6
14.9 ± 0.4
104.7
T22
25.4 ± 1.1
40.5 ± 0.6
62.7
29.8 ± 1.6
39.0 ± 1.7
76.4
14.0 ± 0.7
15.7 ± 0.6
89.2
T23
28.4 ± 1.7
34.5 ± 1.5
82.3
30.9 ± 2.2
37.5 ± 5.5
82.4
16.3 ± 0.4
16.6 ± 0.9
98.2
T24
39.0 ± 0.6
60.0 ± 2.0
65.0
42.0 ± 3.1
50.0 ± 0.8
84.0
15.0 ± 0.4
14.8 ± 0.4
101.4
T25
30.7 ± 2.4
39.5 ± 2.1
77.7
35.7 ± 5.4
40.8 ± 0.5
87.5
17.8 ± 0.8
19.6 ± 1.1
90.8
T26
29.6 ± 1.5
49.5 ± 4.7
59.8
30.8 ± 1.2
51.0 ± 4.8
60.4
19.1 ± 0.2
18.1 ± 1.3
105.5
T27
34.6 ± 0.4
44.5 ± 3.2
77.8
38.8 ± 3.5
47.5 ± 4.4
79.6
19.5 ± 0.3
17.9 ± 0.6
108.9
T28
28.8 ± 1.2
41.0 ± 1.4
70.2
33.0 ± 1.0
46.5 ± 2.1
71.0
15.4 ± 0.9
16.4 ± 1.8
93.9
T29
34.5 ± 1.6
45.0 ± 1.8
76.7
39.5 ± 1.2
43.5 ± 1.3
90.8
17.7 ± 0.2
18.8 ± 0.8
94.1
T30
26.5 ± 1.4
42.0 ± 1.8
63.1
28.0 ± 1.8
35.5 ± 2.3
78.9
17.3 ± 1.1
17.5 ± 0.7
98.9
T31
30.3 ± 0.7
44.0 ± 2.1
68.9
36.5 ± 2.3
47.3 ± 2.6
77.2
17.2 ± 1.3
19.2 ± 1.4
89.6
T32
26.3 ± 3.1
46.3 ± 1.7
56.8
32.5 ± 3.3
49.8 ± 2.3
65.3
14.1 ± 0.9
16.2 ± 0.2
87
T33
32.1 ± 1.7
35.7 ± 0.9
89.9
39.5 ± 2.7
33.0 ± 1.0
119.7
16.4 ± 0.6
13.8 ± 1.6
118.8
T34
29.7 ± 2.4
43.3 ± 3.4
68.6
32.0 ± 3.5
41.5 ± 3.0
77.1
17.3 ± 1.5
18.3 ± 1.6
94.5
T35
24.1 ± 1.6
51.8 ± 2.3
46.5
31.0 ± 1.4
60.0 ± 1.5
51.7
17.7 ± 0.4
20.3 ± 0.5
87.2
T36
20.8 ± 1.3
41.8 ± 2.3
49.8
27.9 ± 2.1
47.0 ± 2.6
59.4
17.3 ± 0.3
18.8 ± 0.7
92
T37
28.5 ± 1.8
39.3 ± 3.1
72.5
29.8 ± 2.6
37.3 ± 2.6
79.9
18.9 ± 0.4
17.2 ± 1.4
109.9
T38
29.8 ± 3.0
54.0 ± 0.6
55.2
34.3 ± 2.1
53.8 ± 5.4
63.8
14.8 ± 0.8
21.5 ± 1.5
68.8
T39
33.5 ± 0.7
54.5 ± 2.1
61.5
37.5 ± 2.9
52.8 ± 2.0
71
18.0 ± 1.2
21.0 ± 1.0
85.7
T40
29.3 ± 2.4
42.8 ± 2.5
68.5
30.0 ± 1.5
46.5 ± 3.3
64.5
17.1 ± 0.6
16.6 ± 0.4
103
± Means standard errors (n = 3).
Selection criteria for accessions with low temperature tolerance and selected accessions for 7 traits.
Traits
Selection criteria (difference between 10 and 15℃ )
Selected accessions (10th percentile)
Plant height
The largest percentage
T20, T10, T12, T06
Leaf length
The largest percentage
T33, T10, T20, T07
Stem diameter
The largest percentage
T10, T33, T07, T37
Chlorophyll contents
The largest percentage
T27, T21, T10, T06
Days to flowering
The smallest percentage
T10, T33, T14, T25
The number of flowers
No difference
T16, T27, T35, T32
Fruit set ratio
The largest percentage
T14, T38, T10, T30
± Means standard errors (n = 3).
Table 1
Accessions used in this study and their fruit types.
Values are mean ± standard deviation. Comparison of the heading date in 2014 (HD), grain length (GL), grain width (GW), 1000 grain weight and grain fertility of wild-type and wspl. Data show mean and SD of biological replicates (n > 10) and statistically calculated by Student’s t-test (NS,
, and
stand for not statistically significant at the 0.05 probability level, significant at the 0.05 and 0.01 probability levels, respectively).
Table 2
Effects of low temperature on leaf length and width, and stem diameter among 40 tomato accessions.
± Means standard errors (n = 3).
Table 3
Selection criteria for accessions with low temperature tolerance and selected accessions for 7 traits.
